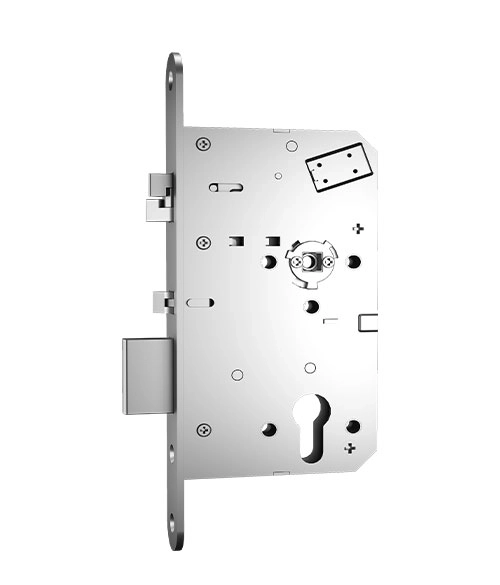

Electrified Mortise Lock (Euro, Solenoid Driving), 72-55/60/65TD

Solenoid Control Mortise Lock　

The 72-55/60/65TD electrified mortise lock is a high-quality European-style lock designed for enhanced security and convenience. It features automatic deadbolt locking, ensuring the door is securely locked when closed. The exit side is reversible, making installation flexible for various door configurations. With its double-action latch, the eletrified mortise lock provides smooth operation, while the free wheel, clutch design prevents unnecessary wear. Ideal for both commercial and residential applications, this lock combines durability with ease of use, offering reliable performance and superior security for your doors. Perfect for a wide range of applications, including high-traffic areas.checklist_mark_icon-15px

Request An Inquiry

Deadbolt auto-throw when door close

Solenoid types,

4 switches, for access control

1) Distance: 72mm

2) Backset: 55, 60, 65mm

3) 12-24V DC

4) Monitor:

   A) Auxiliary latch(ALM)

   B) Deadbolt(DM)

   C) Handle(REX, Request to Exit)

   D) Cylinder(KO, key override monitoring)

5) Fail secure/Fail safe: field adjustable



Please get more information from this lin:https://youtu.be/PZeT8teA9iM



SPECIFICATION

  • Feature

    Automatic deadbolt locking

    Exit side can be changed over

    Controllable outside handle

    Double action latch

    Bolt projection, one throw, 20mm

    Free wheel, clutch design

    EL/EU can be changed on site

    Suitable for fire-rated doors

    S: Split spindle; T: Straight spindle

    Fair secure/Fail safe

    Cyllinder override

  • Certificate (Pending)

    EN12209-2016: 3X9-0G20

    EN179: 376B1342AB

    EN1125: 376B1321AA

    EN1634-1: fire rated 4 hours

    EN14846: 3S8F-L611

    EN61000-6-1, EN61000-6-3

  • Voltage

    12-24V DC optional operating voltage

  • Current

    300mA/150mA

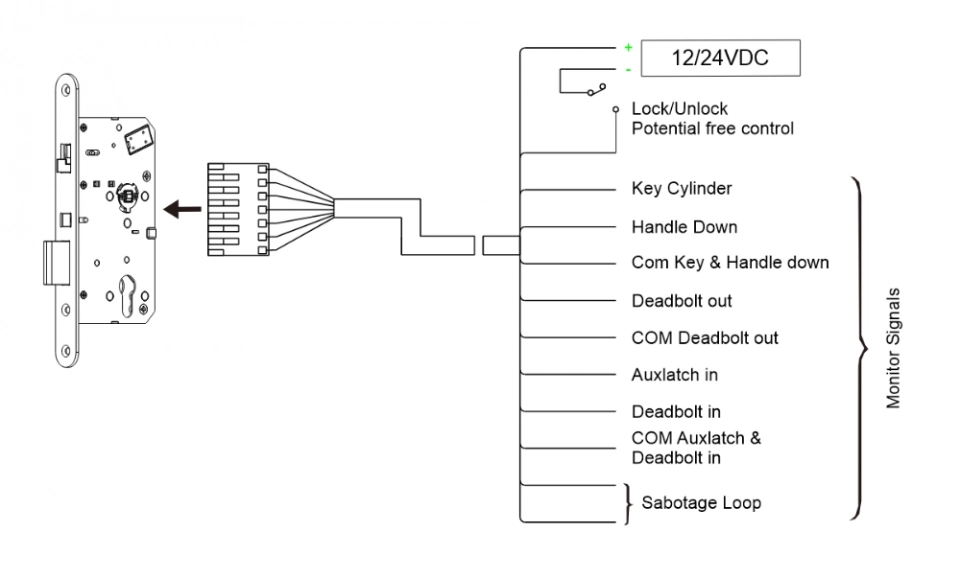

  • Monitoring functions

    Door status

    Handle down

    Bolt deadlocked

    Lock open

    Key cylinder used

    Sabotage loop

  • Current

    300mA/150mA

  • Environment

    Operational temperature range -20°C to +60°C

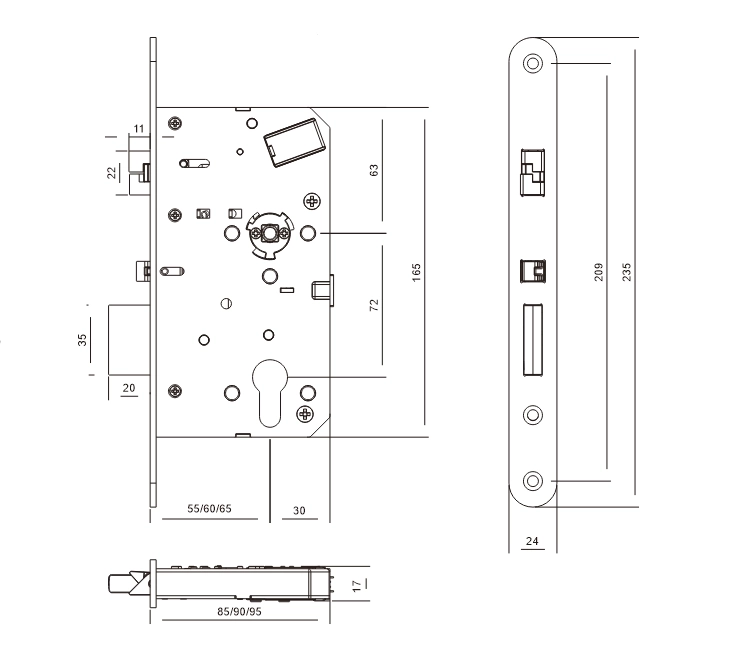

  • Backset

    55/60/65mm

  • Distance

    72mm

  • Door thickness

    Standard applications 35 to 64mm

  • Door clearance

    3-6.5mm

  • Hand

    Non-handed

  • Furniture

    Compatible with Camax series door furniture

  • Standard finishes

    Satin finish

  • Video tutorial
