Electrified Exit Device Trims
Security Solutions for Modern Access Control
Camax electrified trims provide fail-safe and fail-secure options, integrating effortlessly with your existing exit devices for enhanced building security. OEM & ODM solutions tailored to your needs.
Electrified Exit Device Trims
Camax electrified trims provide fail-safe and fail-secure options, integrating effortlessly with your existing exit devices for enhanced building security. OEM & ODM solutions tailored to your needs.
Electrified Exit Device Trims vs. Mechanical Exit Device Trims
Which Electrified Lever Trim Fits Best?
While mechanical trims are traditional, non-electronic hardware components that rely on physical mechanisms for operation,
electrified trims build on mechanical designs by adding electronic components for advanced control.
Electrified Trim
- Electronic control via power
- Fully integrates with card/keypad systems
- Fail-safe & fail-secure options
- Provide real-time logging
- Modern commercial buildings
Mechanical Trim
- Manual locking/unlocking
- Access control not supported
- Operate via manual force without wiring
- Simple installation with no power requirements
- Cost-effective for basic applications
Camax Electrified Exit Device Trims
Camax offers high-quality trims designed for reliability and ease of use. Below are brief specifications for the key models,
all featuring 12/24V DC operation, fail-safe/fail-secure modes, and non-handed designs for versatile installation.

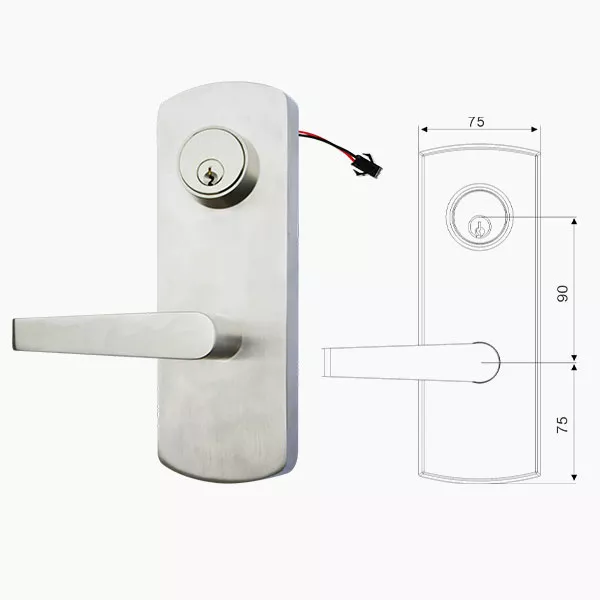

CMPA410-TD-EL/EU
Operation voltage: 12/24VDC, 12-24VDC
Operation current: 300/150mA
Fail safe/fail secure
Non-handed
Free wheel, clutch design
Interchangeable core cylinder, core 31.9mm; Option: CMPA410-ACC-TD-EL/EU
Normal power supply: The electrified exit device trim for commercial doors is unlocked via card reader from the outside and door opens by pressing down the lever handle. From the inside, push bar to open door.
Power outage: The trim handle can be unlocked from the outside with a key and door opens by pressing down the lever handle. From the inside, push bar to open door.
>>> Contact Camax for More InfoCMPA410-TD-EL/EU
Operation voltage: 12/24VDC, 12-24VDC
Operation current: 300/150mA
Fail safe/fail secure
Non-handed
Free wheel, clutch design
Interchangeable core cylinder, core 31.9mm; Option: CMPA410-ACC-TD-EL/EU
Normal power supply: The electrified exit device trim for commercial doors is unlocked via card reader from the outside and door opens by pressing down the lever handle. From the inside, push bar to open door.
Power outage: The trim handle can be unlocked from the outside with a key and door opens by pressing down the lever handle. From the inside, push bar to open door.

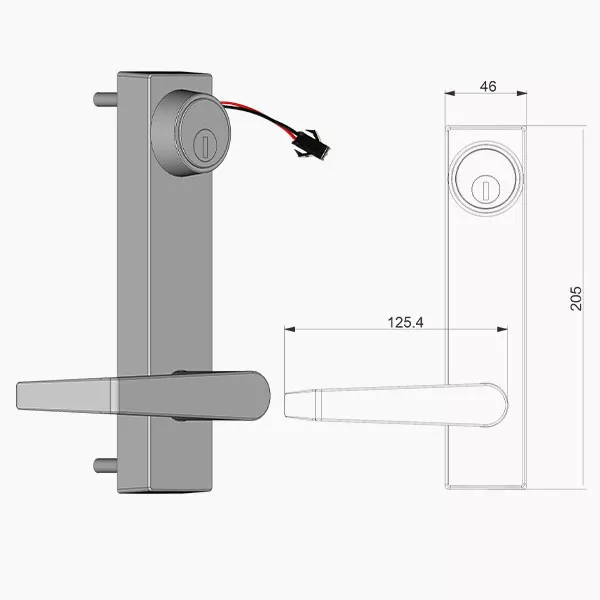

>>> Contact Camax for More InfoCMPA420-TD-EL/EU
Operation voltage: 12/24VDC
Operation current: 300/150mA
Fail safe/fail secure
Non-handed
Interchangeable core cylinder, core 31.9mm; Option: CMPA420-ACC-TD-EL/EU
Normal power supply: The electrified exit device trim is unlocked via card reader from the outside and door opens by pressing down the lever handle. From the inside, push bar to open door.
Power outage: The trim handle can be unlocked from the outside with a key and door opens by pressing down the lever handle. From the inside, push bar to open door.
>>> Contact Camax for More Info
CMPA420-TD-EL/EU
Operation voltage: 12/24VDC
Operation current: 300/150mA
Fail safe/fail secure
Non-handed
Interchangeable core cylinder, core 31.9mm; Option: CMPA420-ACC-TD-EL/EU
Normal power supply: The electrified exit device trim is unlocked via card reader from the outside and door opens by pressing down the lever handle. From the inside, push bar to open door.
Power outage: The trim handle can be unlocked from the outside with a key and door opens by pressing down the lever handle. From the inside, push bar to open door.
>>> Contact Camax for More Info
CMPA430-TD-EL/EU
Operation voltage: 12/24VDC, 12-24VDC
Operation current: 300/150mA
Fail safe/fail secure
Non-handed
Free wheel, clutch design
Interchangeable core cylinder, core 31.9mm; Option: CMPA430-ACC-TD-EL/EU
Normal power supply: The electrified exit device trim is unlocked via card reader from the outside and door opens by pressing down the lever handle. From the inside, push bar to open door.
Power outage: The trim handle can be unlocked from the outside with a key and door opens by pressing down the lever handle. From the inside, push bar to open door.
>>> Contact Camax for More InfoCMPA430-TD-EL/EU
Operation voltage: 12/24VDC, 12-24VDC
Operation current: 300/150mA
Fail safe/fail secure
Non-handed
Free wheel, clutch design
Interchangeable core cylinder, core 31.9mm; Option: CMPA430-ACC-TD-EL/EU
Normal power supply: The electrified exit device trim is unlocked via card reader from the outside and door opens by pressing down the lever handle. From the inside, push bar to open door.
Power outage: The trim handle can be unlocked from the outside with a key and door opens by pressing down the lever handle. From the inside, push bar to open door.
>>> Contact Camax for More InfoCompatible Products
Camax electrified trims are engineered for seamless integration with Camax’s exit devices,
allowing easy electrification of existing setups.

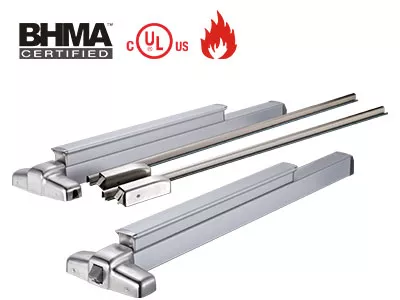

CMP450 Series
Heavy-Duty Panic Devices
Certificate: ANSI/BHMA A156.3, grade 1; UL10C, 3-hour fire rating
Modular design, more than 4 point locks are available
Security: anti-thrust latch
Non-handed

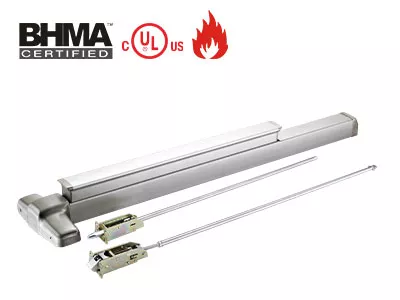

CMP400 Series
Panic Exit Devices
Certificate: ANSI/BHMA A156.3, grade 1; UL10C, fire rating; EN1125; EN1634-1, wood door 90 minutes, steel door 120 minutes
Material: Stainless steel, Steel
Non-handed
Partner with Camax: Your OEM & ODM Manufacturer for Electrified Exit Devices
At Camax, we manufacture electrified exit devices and offer solutions that combine safety, security, and modern access control.
OEM/ODM Services
Camax offers customized solutions tailored to your project’s needs. Whether you need specific features or bulk orders, we’ve got you covered.
Trusted by Professionals
Camax’s electrified exit devices are trusted by architects, security professionals, and building managers worldwide for their performance and durability.
Industry Expertise
Camax has been a leader in manufacturing high-quality commercial door hardware. Our products meet the highest industry standards, ensuring durability, reliability, and security.
