Camax Electrified Exit Devices
Secure, Smart, and Reliable
Integrate seamlessly with access control systems, delivering durability and safety without compromise

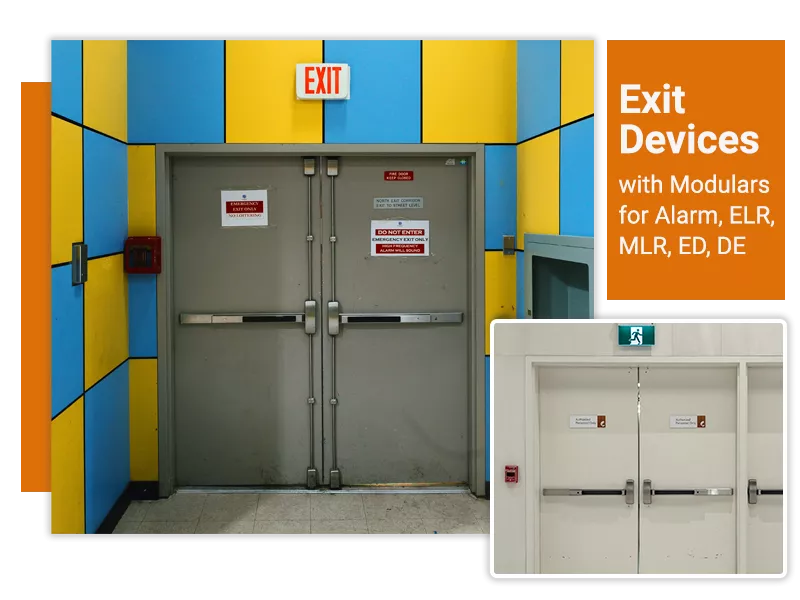

Camax Electrified Exit Devices
Integrate seamlessly with access control systems, delivering durability and safety without compromise
Why Electrified Exit Devices?
A Smarter Choice for Modern Buildings
An electrified exit device represents a significant advancement over traditional mechanical exit hardware, integrating sophisticated electronic capabilities to enhance security and functionality. Unlike a standard mechanical exit device, which serves solely as a manual, push-to-exit mechanism designed for life safety, an electrified exit device—such as Camax’s electrified panic bar or electrified crash bar—seamlessly integrates with comprehensive access control systems to deliver intelligent, centralized control.
Electrification Options: Choose from fail-safe or fail-secure modes, latch retraction, or alarm integration to fit your building’s needs.
Enhanced Security: Our electrified panic bar works with keypads, card readers, and other access control systems to ensure only authorized entry.
Built for Durability: Heavy-duty design ensures reliable performance even in the busiest commercial spaces.
Applications of Electrified Exit Devices: Where Safety Meets Security
Whether it’s ensuring safe passage during an emergency or integrating with advanced building security,
Camax electrified panic hardware is designed for diverse environments.

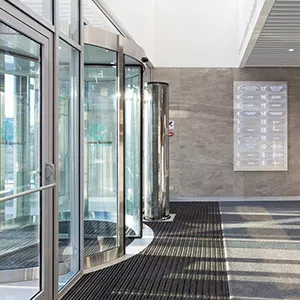

Commercial Buildings
Offices, corporate spaces, and mixed-use complexes.

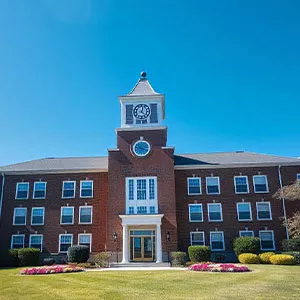

Schools & Universities
Keeping students and staff safe with secure, controlled exits.

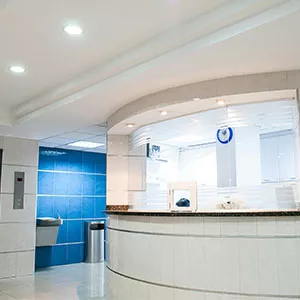

Hospitals & Healthcare
Reliable exit solutions for high-traffic and sensitive areas.
Shopping Malls & Retail
Secure public spaces without compromising accessibility.
Camax’s Electrified Exit Devices Solution
Explore our range of electrified panic bars and hardware—each option tailored for specific security tweaks and easy installation.

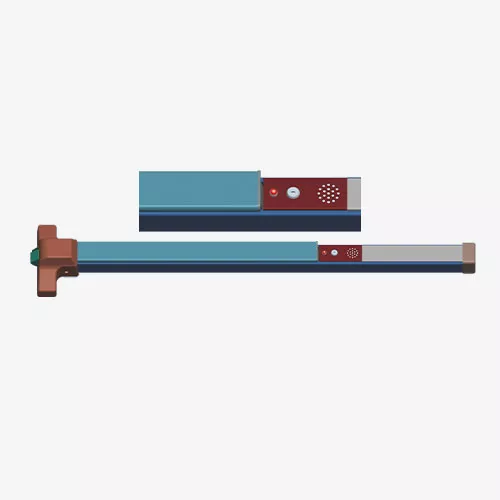

Smart Alarm Options
(Catch unauthorized exits before they happen with our reliable alarm setups on electrified exit devices.)
Standalone Alarm DJA
Battery-operated, with ignition switch cylinder
Voice alarm, 110dB.
All languages are optional.
Cylinder is used to disarm or reset the alarm.
Battery with 2 years of standby time.
A power shortage (voltage less than 7V) is indicated by a red LED alarm.
A two-minute alarm (or until disarmed) will sound once the push bar is depressed.
Voltage: 9V DC
Standalone Alarm DJB
Battery-operated, with mortise cylinder
Voice alarm, 110dB.
All languages are optional.
Cylinder is used to disarm or reset the alarm.
Battery with 2 years of standby time.
A power shortage (voltage less than 7V) is indicated by a red LED alarm.
A two-minute alarm (or until disarmed) will sound once the push bar is depressed.
Voltage: 9V DC
Online Alarm DJC
Power by cable, with mortise cylinder
Voice alarm, 110dB.
All languages are optional.
Cylinder is used to disarm or reset the alarm.
A two-minute alarm (or until disarmed) will sound once the push bar is depressed.
Voltage: 12/24V DC
Standalone Alarm DJA
Battery-operated, with ignition switch cylinder
Voice alarm, 110dB.
All languages are optional.
Cylinder is used to disarm or reset the alarm.
Battery with 2 years of standby time.
A power shortage (voltage less than 7V) is indicated by a red LED alarm.
A two-minute alarm (or until disarmed) will sound once the push bar is depressed.
Voltage: 9V DC
Standalone Alarm DJB
Battery-operated, with mortise cylinder
Voice alarm, 110dB.
All languages are optional.
Cylinder is used to disarm or reset the alarm.
Battery with 2 years of standby time.
A power shortage (voltage less than 7V) is indicated by a red LED alarm.
A two-minute alarm (or until disarmed) will sound once the push bar is depressed.
Voltage: 9V DC
Online Alarm DJC
Power by cable, with mortise cylinder
Voice alarm, 110dB.
All languages are optional.
Cylinder is used to disarm or reset the alarm.
A two-minute alarm (or until disarmed) will sound once the push bar is depressed.
Voltage: 12/24V DC
Advanced Features of Camax Electrified Exit Devices
(Explore our innovative electrified panic bar solutions, designed for seamless operation, enhanced security, and tailored functionality across diverse environments.)

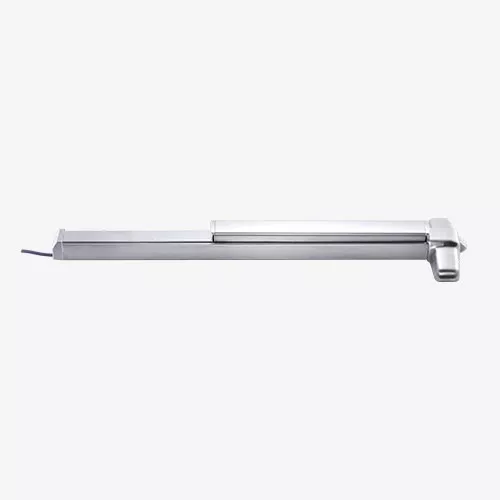

Electrical Latch Retraction (ELR)
Modular for CMP450 Series and CMP955
Latch retracted by motor when power on, released by solenoid when power off.
Provides momentary or continuous latch and push bar retraction.
The device allows free egress at all times.
Motor driving to retract latch/mortise lock latch bolt and deadbolt/top and bottom bolt.
Operation voltage: 12-24V DC
Operation current: 155mA/12V, 106mA/24V
Monitor latch, touch bar, trim, top and bottom bolt, signals to access control system
Motorized Latch Retraction (MLR)
Modular for CMP450 Series
Latch retracted by motor when power on, released by solenoid when power off.
Provides momentary or continuous latch and push bar retraction.
The device allows free egress at all times.
Motor driving to retract latch/mortise lock latch bolt and deadbolt/top and bottom bolt.
Operation voltage: 24V DC
Operation current: 1.2A max, static 150mA
Monitor latch, touch bar, trim, top and bottom bolt, signals to access control system
Electric Dogging (ED)
Modular for CMP450 Series
Latch automatically retracted by motor, released by solenoid.
Motor driving to retract latch/mortise lock latch bolt and deadbolt/top and bottom bolt.
Operation voltage: 12-24V DC
Operation current: 160mA/12V, 110mA/24V
Monitor latch, touch bar, trim, top and bottom bolt, signals to access control system
Delayed Egress (DE)
Modular for CMP450 Series
If the touch bar is pressed for more than 2 seconds, the alert is triggered.
After a delay of 1 to 15 seconds (based on settings), the alarm stops and the door can be opened.
Key or by access control system to stop alert, and open door.
Operation voltage: 12-24V DC
Operation current: 350mA
Monitor latch, touch bar, signal to access control system
Down counter display
Material: 304 or stainless steel painted
Partner with Camax: Your OEM & ODM Manufacturer for Electrified Exit Devices
At Camax, we manufacture electrified exit devices and offer solutions that combine safety, security, and modern access control.
OEM/ODM Services
Camax offers customized solutions tailored to your project’s needs. Whether you need specific features or bulk orders, we’ve got you covered.
Trusted by Professionals
Camax’s electrified exit devices are trusted by architects, security professionals, and building managers worldwide for their performance and durability.
Industry Expertise
Camax has been a leader in manufacturing high-quality commercial door hardware. Our products meet the highest industry standards, ensuring durability, reliability, and security.
Contact Camax for Door Access Solutions
Camax delivers tailored door access solutions—from electrified panic devices to access-controlled mortise locks.
Let our specialists guide your project from specification to commissioning.
