ANSI Electrified Mortise Locks
Secure & Smart Access Control
Grade 1, Fire-Rated, Advanced Security Solutions for Commercial Buildings
ANSI Electrified Mortise Locks
Grade 1, Fire-Rated, Advanced Security Solutions for Commercial Buildings
ANSI Electrified Mortise Locks
For All Commercial Applications
ANSI electrified mortise locks are a vital security solution for modern commercial buildings, providing robust access control and superior performance. These locks are designed for seamless integration with electronic access control systems, making them ideal for high-traffic areas such as office buildings, hospitals, and schools. Certified to ANSI/BHMA Grade 1 and fire-rated standards, they ensure maximum durability, enhanced security, and reliable operation in demanding environments.
Access Control Integration
Integrate effortlessly with modern access control systems, including key cards and biometric scans. Manage entry and track activity efficiently from a central system.
Remote Monitoring & Control
Enable remote locking/unlocking of doors, monitor access activity, and perform security audits remotely, ideal for managing multiple doors across large buildings.
Enhanced Security
Features like tamper-resistance and compatibility with fire-rated doors ensure that your building stays secure, even in emergency situations. These locks prevent unauthorized access and enhance overall safety.
Convenience & Automation
Set timed access, automate locking/unlocking based on schedules, and control locks remotely for more convenient building management.
Why Certifications Matter: Key Standards for Enhanced Security
Camax’s Electrified Mortise Locks Ensures Performance, Durability, and Safety in Commercial Environments
ANSI/BHMA Grade 1
The Ultimate Standard for Durability and Security
The ANSI/BHMA Grade 1 certification represents the highest standard for commercial locks, guaranteeing their durability and resilience. In environments where security is paramount—such as government buildings, hospitals, and high-traffic areas—Grade 1 locks ensure long-lasting performance under heavy use. This certification signifies that the lock has passed rigorous tests for strength, functionality, and resistance to tampering. For businesses and institutions looking for the most robust security solution, Grade 1 locks are non-negotiable.
UL10C Fire-Rated
Fire Safety Compliance You Can Rely On
The UL10C fire-rating certification is crucial for ensuring that a mortise lock remains operational in a fire emergency. In commercial and public buildings, fire-rated locks are necessary for compliance with safety codes and fire regulations. UL10C ensures that the lock will maintain its integrity during a fire, preventing the spread of smoke and flames while providing safe evacuation routes. Having this certification is vital for any building that requires fire safety measures, making it an essential feature for ANSI electrified mortise locks used in fire-rated doors.
Explore Camax Advanced ANSI Electrified Mortise Lock Solutions
Discover the CML850, CML855, and CML860: Superior Security for Every Commercial Need
CML850EU-REX-ALM-LM-KO-DP (switches)-SSS (finish)-304/316 (material)
Features: The lock can be operated by intercom systems and key switches or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.
Certificates: A156.13, grade 1; A156.25; A156.5; UL294; UL10C&CAN-ULC-S104
Voltage: 12V DC, 24V DC or 12-24V DC optional operating voltage.
Current: 300mA/150mA.
Monitoring: Handle, request to exit (REX); Latch bolt (LM); Auxiliary latch (ALM); Key override (KO); Door position (DP).
Fail secure/Fail safe
Hand: Non-handed.
| Outside/Inside | SKU | Type | Function Description |
|---|---|---|---|
 |
CML850ES | Electrically Secure and Safe, split spindle CML850EL+ES1-TD-EU |
- Outside levers unlocked by 12V or 24V DC electrically, power failure keeps outside lever locked. - Inside levres locked by 12V or 24V DC electrically, power failure keeps inside lever unlocked. - Auxiliary latch deadlocks latchbolt when door is closed. - Latchbolt retracted by key outside any time. |
 |
CML850EU | Electrically Unlocked, split spindle | - Outside levers unlocked by 12V or 24V DC. - Latchbolt retracted by key outside or by inside lever. - Switch or power failure keeps outside lever locked. - Auxiliary latch deadlocks latchbolt when door is closed. - Inside lever is always free for immediate egress. - Keys are for the emergency. |
| CML850EL | Electrically Locked, split spindle | - Outside levers continuously by 12V or 24V DC. - Latchbolt retracted by key outside or by inside lever. - Switch or power failure allows outside lever to retract latchbolt. - Auxiliary latch deadlocks latchbolt when door is closed. - Inside lever is always free for immediate egress. - Keys are for the emergency. |
|
 |
CML852EU | Electrically Unlocked Both Sides, solid spindle | - Outside and inside levers unlocked electrically. - Latchbolt retracted by key either side. - Switch or power failure keeps inside and outside levers locked. - Auxiliary latch deadlocks latchbolt when door is closed. - Keys are for the emergency. |
| CML852EL | Electrically Locked Both Sides, solid spindle | - Outside and inside levers continually locked electrically. - Latchbolt retracted by key either side. - Switch or power failure allows inside and outside levers to retract latchbolt. - Auxiliary latch deadlocks latchbolt when door is closed. - Keys are for the emergency. |
CML855EL-REX-ALM-LM-DM-KO (switches)-SSS (finish)-304/316 (material)
Features: The lock can be operated by intercom systems and key switches or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.
Certificates: A156.13, grade 1; A156.25; A156.5; UL294; UL10C&CAN-ULC-S104
Voltage: 12V DC, 24V DC or 12-24V DC optional operating voltage.
Current: 300mA/150mA.
Monitoring: Handle, request to exit (REX); Latch bolt (LM); Auxiliary latch (ALM); Dead bolt (DM); Key override (KO).
Fail secure/Fail safe
Hand: Non-handed.
| Outside/Inside | SKU | Type | Function Description |
|---|---|---|---|
 |
CML855EU | Electrically Unlocked (with deadbolt), split spindle | - Function same as CML850EU, deadbolt as additional point of locking. - Deadbolt thrown and retracted by key outside and thumbturn inside. - Also could be retracted by both side levers. - Inside lever is always free for immediate egress. - Auxiliary latch deadlocks latchbolt when door is closed. - Keys are for the emergency. |
| CML855EL | Electrically Locked (with deadbolt), split spindle | - Function same as CML850EL, deadbolt as additional point of locking. - Deadbolt thrown and retracted by key outside and thumbturn inside. - Also could be retracted by both side levers. - Inside lever is always free for immediate egress. - Auxiliary latch deadlocks latchbolt when door is closed. - Keys are for the emergency. |
CML860-REX-ALM-LM-DM-KO-NM (No motor)
Features: The lock utilizes CML800 series mortise mechanical platforms. It is suitable for all standalone applications. Monitored and non-monitored versions are available.
Compliance: ANSI/BHMA A156.25-2007, grade 1; ANSI/BHMA A156.13-2005, grade 1; UL10C, 3-hour fire rating
Voltage: 4V-6VDC.
Monitoring: Handle, request to exit (REX); Latch bolt (LM); Auxiliary latch (ALM); Dead bolt (DM/DND); Key override (KO).
Hand: Non-handed.
Why Trust Camax for Your Locking Solutions?
Industry-Leading Quality, Reliability, and Expertise Backed by Certifications
OEM/ODM Services
Camax offers customized solutions tailored to your project’s needs. Whether you need specific features or bulk orders, we’ve got you covered.

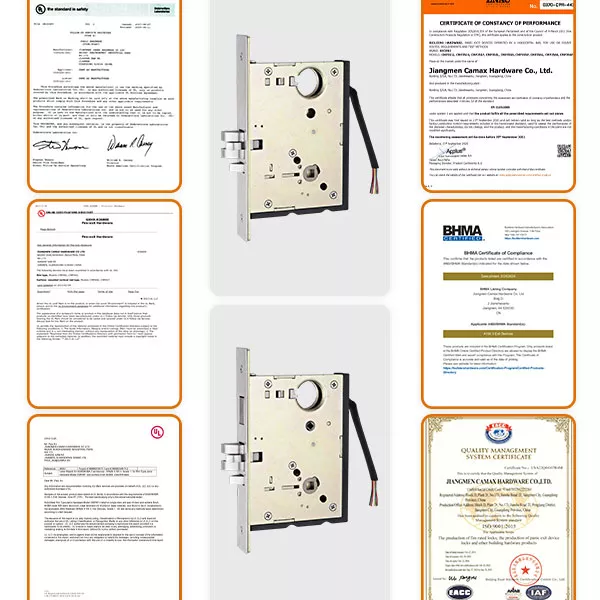

Certifications
Camax ANSI electrified mortise locks are certified to ANSI/BHMA Grade 1 and UL10C fire-rated standards, ensuring that they perform under the most demanding conditions.
Industry Expertise
Camax has been a leader in manufacturing high-quality commercial door hardware. Our products meet the highest industry standards, ensuring durability, reliability, and security.
Trusted by Professionals
Camax’s ANSI electrified mortise locks are trusted by architects, security professionals, and building managers worldwide for their performance and durability.
