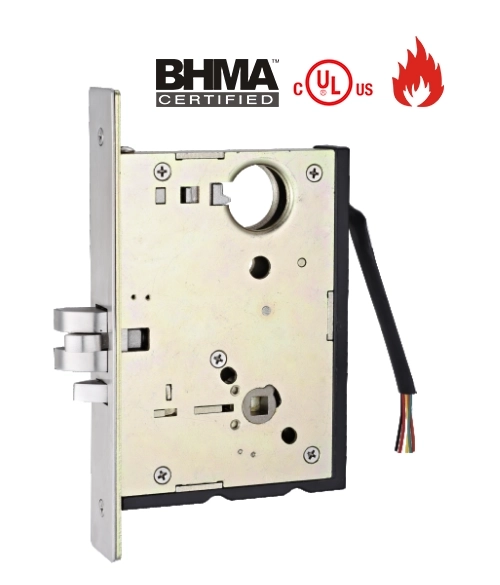

Electrified Mortise Lock (ANSI, Solenoid Driving), CML850
The CML850 electrified mortise lock combines advanced solenoid driving technology with the reliable CML800 series mechanical platform. Engineered for versatility, this electrified mortise lock is ideal for a wide range of commercial applications, offering exceptional security and adaptability. Its innovative design allows a single lock to support multiple functions, making it a cost-effective and practical choice. Easily configurable on-site, the CML850 meets various security needs without the hassle of replacing components. With its robust construction and user-friendly setup, this electrified mortise lock ensures reliable performance and seamless integration into any commercial setting, providing enhanced safety and convenience for modern businesses.
SPECIFICATION
-
- Feature
-
Utilize CML800 Series mortise mechanical platforms
Suitable for all commercial applications
Operated by inercom systems and key switches or integrated with electronic access control systems for use with higher security devices, such as key pads or card readers
Non monitored and monitored versions are available.
Fail secure/Fail safe
-
- Certificate
-
A156.13, grade 1
A156.25
A156.5
UL294
UL10C&CAN-ULC-S104
-
- Voltage
-
12V DC
24V DC
12-24V DC
-
- Current
-
300mA/150mA
-
- Monitoring
-
Handle, request to exit (REX)
Latch bolt (LM)
Auxiliary Latch (ALM)
Key override (KO)
Door position (DP)
-
- Environment
-
Operational temperature range -20°C to +60°C
-
- Backset
-
70mm
-
- Distance
-
92mm
-
- Latchbolt
-
Stainless steel 304, projection 19mm
-
- Door thickness
-
Standard applications 35 to 64mm
-
- Door clearance
-
3-6.5mm
-
- Hand
-
Non-handed
-
- Cylinder
-
Standard Camax round shaped cylinders
-
- Furniture
-
Compatible with Camax series door furniture
-
- Standard Finishes
-
Satin finish
-
