Motorrized Latch Retraction (MLR), CMP450-MLR / CMP46X-MLR
The Motorized Latch Retraction (MLR) system for the CMP450 Series offers seamless and efficient access control. When powered on, the motor automatically retracts the latch, providing smooth entry and exit. Upon power off, the latch is released by the motor, ensuring easy exit at all times. This system is designed to enhance security while allowing free egress, making it ideal for high-traffic commercial environments. Its modular design ensures compatibility with the CMP450 Series, providing flexibility and reliability for modern security needs. The MLR system combines convenience with advanced functionality to offer both security and ease of use.
SPECIFICATION
-
- Feature
-
Modular for CMP450 Series
-
- Function
-
Latch retracted by motor when power on, released by motor when power off.
Provide momentary or continuous latch and push bar retraction.
The device allows free egress at all times.
Motor driving to retract latch/mortise lock latch bolt and deadbolt/top and bottom bolt

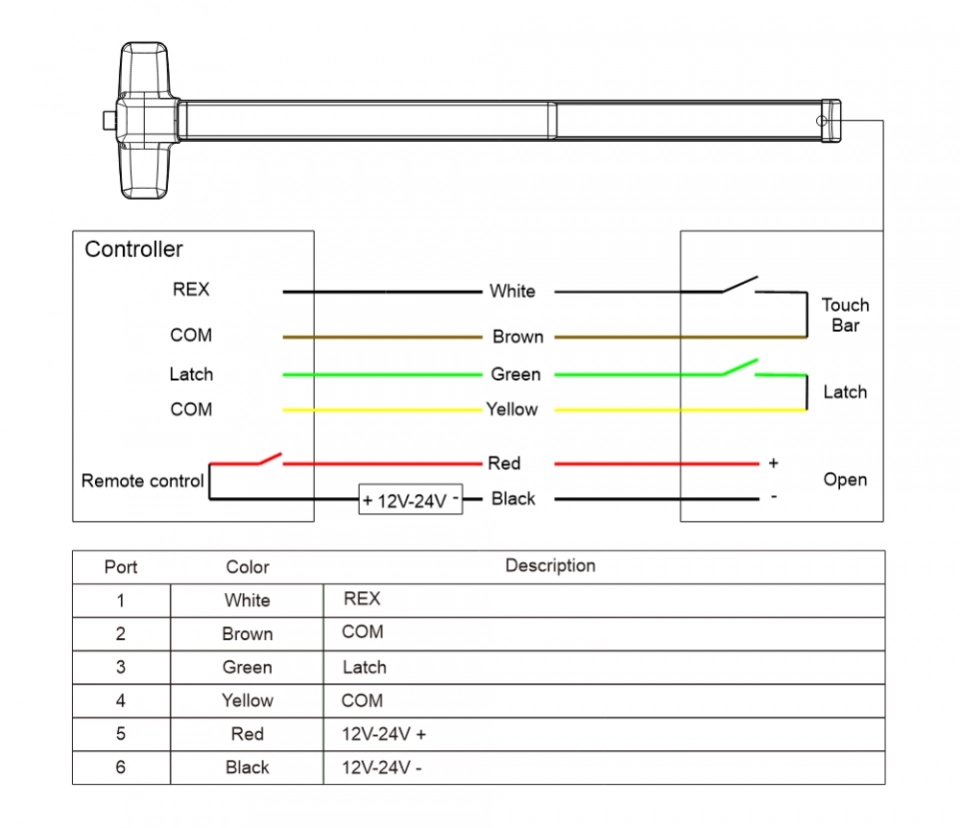

Monitor latch, touch bar, trim, top and bottom bolt, signals to access control system
-
- Operation voltage
-
12-24V DC
-
- Operation current
-
1.2A max, static 150mA
